E-1500 XLT Hot Tube
Tank Capacity Maximum -- 2,200
Tank Capacity nominal -- 1,450
300 Gallons per hour

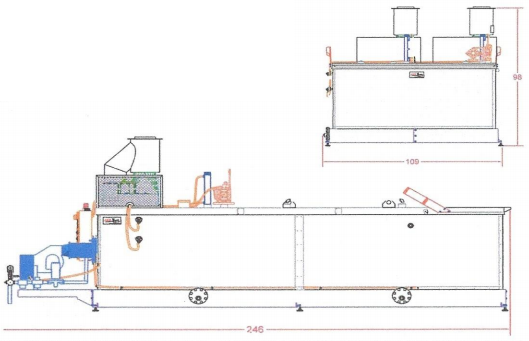

Length -- 246"
Width -- 108"
Height -- 98"
Standard Features
- Tank construction -- 10 gauge, 316L stainless steel construction
- Heat exchange tube -- 10 gauge, 316L stainless steel construction
- Access and blower lid -- stainless steel for all wetted parts
- Insulation -- 2” foil backed, 850°F, .30 conductivity, .043 SI units
- Exhaust blower housing -- heavy gauge, tig welded stainless steel
- Impeller -- self-cleaning backward inclined radial blade design
- Stack connection -- 14” I.D. flanged
- Blower motor -- 3 hp, 3ph, 2450 rpm
- Power burner -- two (2) forced draft burner, FM rated with full modulation
- Fluid transfer pump -- air operated diaphragm pump, 1” FPT
- Control panel -- NEMA 4 rated enclosure, industrial duty, touch panel, PLC
- Fluid level control -- float actuated ball valve
- Fluid level sensors -- float actuated microswitches, high/low level
- Coalescing filter -- framed galvanized steel mesh at blower inlet
- Clean out -- 4” flange with eccentric reducer at 2” FPT
- Weir -- built in for easy skimming of floating oils
- Belt driven blower -- eliminates transference of vibration and heat
- Pillow block bearings -- heavy duty, greasable for long life
Optional Features
- Special tank/tube construction
- Double wall stacks
- Remote fluid level sensors
- Overspray foam control
- Automation Package
- Skimmer/Sludge Pump
- Remote tank oil sensing
- Power wash clean out ports
- Rectangular clean out
Safety Features
- Industrial safety disconnect at the unit
- Air-cooled, counterweighted access lid
- Safety circuitry and manual reset
- Flame safety monitoring burner flame
- Safety cage around hot moving parts
- Fluid temperature monitor
- Heat exchanger temperature monitor
- Redundant safety and level controls
