E-900 H/O Hot Bottom
Tank Capacity Maximum -- 1,590
Tank Capacity nominal -- 1,300
Weight -- 4,250
200 Gallons per hour

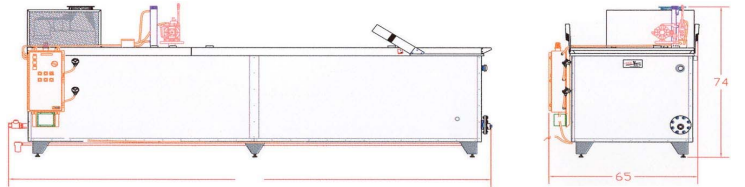

Length -- 208"
Width -- 65"
Height -- 74"
Standard Features
- Construction -- stainless steel for all wetted parts
- Heat exchanger -- 3/8” grade 316L stainless steel, 150 psi maximum pressure, A.S.M.E. Section VIII specifications, “U” stamped
- Insulation -- 2” foil backed, 850°F, .30 conductivity, .043 SI units
- Exhaust blower housing -- heavy gauge, tig welded stainless steel
- Impeller -- self-cleaning backward inclined radial blade design
- Stack connection -- 10” I.D. flanged
- Fluid transfer pump -- air operated diaphram pump, 1/2” FPT
- Blower motor -- 3 hp, 3ph, 3450 rpm
- Control panel -- NEMA 4, industrial duty
- Fluid level control -- float actuated ball valve
- Fluid level sensors -- float actuated microswitches, high/low level
- Coalescing filter -- framed galvanized steel mesh at blower inlet
- Clean out -- 4” flange with eccentric reducer at 2” FPT
- Weir -- built in for easy skimming of floating oils
- Belt driven blower -- eliminates transference of vibration and heat
- Pillow block bearings -- heavy duty, greasable for long life
- Steam trap -- 1” NPT trap with strainer on condensate line
- Ball valve -- 1-1/2” NPT valve on steam inlet to heat exchanger
Optional Features
- Special Tank Construction
- Exhaust Stacks
- Remote Fluid Level Sensors
- Overspray/Foam Control
- Automation Package
- Skimmer/Sludge Pump
- Fluid temperature monitor
- Modulating steam valve
Safety Features
- Industrial safety disconnect at the unit
- Air-cooled, counterweighted access lid
- Safety circuitry and manual reset
- Safety cage around hot moving parts
- Redundant safety and level controls
